Pediatric Fixed Knee Flexion Deformities Treatment & Management

  • Author: Peter M Stevens, MD; Chief Editor: Dennis P Grogan, MD  more...

Updated: Aug 16, 2013


Medical Therapy

Medical therapy for fixed knee flexion deformity (FKFD) usually consists of Botox injections in the hamstrings or baclofen administered orally or through an intrathecal pump (for cerebral palsy). This is only useful for the dynamic component of crouch gait; it may be an adjunct to osteotomy or guided growth. The patient is often working with a physical therapist on hamstring stretching, quadriceps strengthening, and gait training. This is suitable for younger patients, but after the age of 10 years, deformities are likely to progress despite concerted efforts to the contrary.

Next

Surgical Therapy

Posterior capsulotomy/hamstring recession

For flexion contracture, spasticity management (Bo For flexion contracture, spasticity management (Botox/phenol/baclofen) or hamstring recession may offer some improvement, but these measures cannot overcome fixed knee flexion deformity (FKFD).

This relatively invasive soft tissue procedure poses some risks to the posterior neurovascular structures and requires immobilization with braces, casts, or frames.

Osteotomy

Supracondylar extension osteotomy of the femora has a long track record and is the default mode for many surgeons. Unfortunately, there are associated drawbacks, not the least of which is recurrence with growth, thus mitigating the temporary benefit of this maximally invasive treatment. The varied techniques, tricks, results, and complications have been well described in standard textbooks and journals.

Starting at age 4, this patient subsequently under Starting at age 4, this patient subsequently underwent bilateral extension osteotomies 4 times, with recurrence each time as expected. Perhaps this sequence could have been abbreviated with guided growth, which, even if repeated, requires no casts or delay in weight bearing.

Frame distraction

With or without soft tissue release, some authors favor frame distraction as a means of gradual correction of fixed knee flexion deformity (FKFD). However, the bilateral nature of these problems makes this method relatively expensive and unwieldy. Furthermore, even with protracted bracing, recurrence is relatively common.

This girl born with a teratologic knee flexion def This girl born with a teratologic knee flexion deformity and absent quadriceps had previous posterior capsulotomy, supracondylar osteotomy, and attempted stapling. Subsequently, she had a spatial frame applied to gradually extend the ankylosed knee; however, she fell and sustained a Salter I fracture of the proximal tibia.

Guided growth

Guided growth is a new concept that consists of anterior hemiepiphysiodesis of the distal femora. Originally accomplished with staples, it became apparent that some children were relatively small for the Blount staples.[20] These rigid devices would occasionally migrate or permit relatively slow correction. Using a pair of 8-plates as an alternative has resolved the problem of hardware migration and enabled more rapid correction. The titanium plates, though intracapsular, are nonarticular, being placed medial and lateral to the patellofemoral sulcus. Thus, they are well tolerated, even by young children.

Guided growth permits one to address the FKFD at o Guided growth permits one to address the FKFD at or close to the level of the CORA (center of rotational axis of deformity). This is efficient and prevents the need for translocation, such as is required in an osteotomy. The gradual correction poses no risk to the neurovascular structures.
For FKFD, an 8-plate is placed on either side of t For FKFD, an 8-plate is placed on either side of the patellofemoral sulcus, through a small arthrotomy. Though intracapsular, the plates are nonarticular; synovitis has not been observed.
Previous
Next

Preoperative Details

Guided growth

If one elects to employ guided growth, it is important to ascertain whether the distal femoral physes are open and whether there is, ideally, 12 months or more of predicted growth remaining. The decision to undertake concomitant multilevel reconstructive procedures, including hamstring recession for dynamic contracture, is left to the discretion of the surgeon.

Note, however, that as fixed knee flexion deformity (FKFD) gradually corrects, there may be beneficial effects upon the hip, spine, and ankle. Therefore, it may be wise to await full knee extension and address residual deformities at the time of 8-plate removal.

Previous
Next

Intraoperative Details

Guided growth

With the C-arm in the lateral, horizontal position With the C-arm in the lateral, horizontal position, the physis is localized. A Keith needle is placed in the physis, and two 1.6-mm guide pins are inserted: one medial and one lateral to the sulcus. The cannulated 4.5-mm screws are then inserted. They need not be parallel, but they should not transgress the physis, joint, or posterior cortex.

See the list below:

  • Supine position with knee flexed on bolster
  • Tourniquet control
  • Image intensifier: parked in cross-table, horizontal position
  • Two incisions (3 cm long), medial and lateral to the patella
  • Open capsule and synovium
  • Place Keith or similar needle (sequentially) into anteromedial and anterolateral physis
  • Apply 8-plate (Orthofix): usually 16-mm size
  • Introduce 1.6 guide pins: first the epiphyseal, then metaphyseal
  • Pins need not be parallel but should avoid the physis and joint
  • Predrill cortex (5-mm depth)
  • Insert the 4.5-mm titanium, self-tapping, cannulated screws (24- or 32-mm size)
  • Soft dressing
Previous
Next

Postoperative Details

See the list below:

  • Typically, either as outpatient or with an overnight stay
  • Immediate range of motion and weight bearing are encouraged
  • Resume bracing and physical therapy as indicated
  • One study found that in children with cerebral palsy, the pain pump is effective in postoperative pain management after lower extremity orthopedic procedures. [23]
Previous
Next

Follow-up

See the list below:

  • At 3-month intervals, to measure fixed knee flexion deformity (FKFD) and assess gait
  • Functional limb length and stride length will improve as the knee straightens
  • Remove plates if/when knee is fully extended (avoid recurvatum)
  • Reinsert plates as needed if FKFD recurs with growth
  • Follow-up until skeletal maturity
Previous
Next

Complications

Posterior capsulotomy

See the list below:

  • Neurovascular damage
  • Undercorrection or overcorrection (PCL release)
  • Recurrent deformity

Supracondylar osteotomy

See the list below:

  • Neurovascular damage
  • Loss of fixation
  • Undercorrection or overcorrection: 2 º varus or valgus
  • Pathologic fracture
  • Recurrent deformity

Frame distraction

See the list below:

  • Pin tract problems
  • Infection
  • Recurrent deformity

Guided growth

See the list below:

  • Undercorrection: if not enough growth remaining
  • Overcorrection: if lost to follow-up
  • Recurrent deformity
  • Premature growth arrest will not occur if the periosteum is protected

When compared to the other options, guided growth has far fewer risks and complications and is more cost-effective. The procedure is well tolerated, and the recovery is rapid. It may be repeated as necessary and is readily combined with other procedures as indicated.

Previous
Next

Outcome and Prognosis

The natural history of fixed knee flexion deformity (FKFD) is insidious progression despite bracing, therapy, and even repeated surgical intervention. The goal of treatment is to maintain standing and, hopefully, walking ability while minimizing complications and encumbrance.

One must weigh the risk-to-benefit ratio of any invasive treatment, recognizing that it may need to be repeated. Like so many conditions, it is appealing to consider early intervention, before the onset of secondary problems such as patellar migration or fragmentation. With this in mind, repeated guided growth may be the pathway of least harm and maximum benefit.

In a clinical series of 18 patients with 29 cases of FKFD, the rate of correction was 1.74 º per month; the highest rate noted was nearly 4 º per month. Without the need for immobilization, these children have experienced rapid recovery with minimal setbacks from the surgery.

Previous
Next

Future and Controversies

There may eventually be other methods of temporary physeal restraint. The allure of biodegradable implants or remote-control techniques by electronic or radiofrequency methodology will undoubtedly spur further research.

Previous

Contributor Information and Disclosures
Author

Peter M Stevens, MD Professor, Director of Pediatric Orthopedic Fellowship Program, Department of Orthopedics, University of Utah School of Medicine

Peter M Stevens, MD is a member of the following medical societies: Pediatric Orthopaedic Society of North America, Alpha Omega Alpha, American Academy of Orthopaedic Surgeons, American Orthopaedic Association

Disclosure: Received royalty from Orthofix Inc for independent contractor; Received royalty from Orthopediatrics, Inc for independent contractor; Received honoraria from Orthopediatrics, Inc for speaking and teaching.

Specialty Editor Board

Francisco Talavera, PharmD, PhD Adjunct Assistant Professor, University of Nebraska Medical Center College of Pharmacy; Editor-in-Chief, Medscape Drug Reference

Disclosure: Received salary from Medscape for employment. for: Medscape.

Paul E Di Cesare, MD

Paul E Di Cesare, MD is a member of the following medical societies: American Academy of Orthopaedic Surgeons, American College of Surgeons

Disclosure: Nothing to disclose.

Chief Editor

Dennis P Grogan, MD Clinical Professor (Retired), Department of Orthopedic Surgery, University of South Florida College of Medicine; Orthopedic Surgeon, Department of Orthopedic Surgery, Shriners Hospital for Children of Tampa

Dennis P Grogan, MD is a member of the following medical societies: American Medical Association, American Orthopaedic Association, Scoliosis Research Society, Irish American Orthopaedic Society, Pediatric Orthopaedic Society of North America, American Academy of Orthopaedic Surgeons, American Orthopaedic Foot and Ankle Society, Eastern Orthopaedic Association

Disclosure: Nothing to disclose.

References
  1. van der Krogt MM, Bregman DJ, Wisse M, Doorenbosch CA, Harlaar J, Collins SH. How crouch gait can dynamically induce stiff-knee gait. Ann Biomed Eng. 2010 Apr. 38(4):1593-606. [Medline].

  2. Dias LS. Surgical management of knee contractures in myelomeningocele. J Pediatr Orthop. 1982 Jun. 2(2):127-31. [Medline].

  3. Wright JG, Menelaus MB, Broughton NS, Shurtleff D. Natural history of knee contractures in myelomeningocele. J Pediatr Orthop. 1991 Nov-Dec. 11(6):725-30. [Medline].

  4. McNee AE, Shortland AP, Eve LC, Robinson RO, Gough M. Lower limb extensor moments in children with spastic diplegic cerebral palsy. Gait Posture. 2004 Oct. 20(2):171-6. [Medline].

  5. Thomson JD, Segal LS. Orthopedic management of spina bifida. Dev Disabil Res Rev. 2010. 16(1):96-103. [Medline].

  6. O'Sullivan R, Walsh M, Kiernan D, O'Brien T. The knee kinematic pattern associated with disruption of the knee extensor mechanism in ambulant patients with diplegic cerebral palsy. Clin Anat. 2010 Jul. 23(5):586-92. [Medline].

  7. Palocaren T, Thabet AM, Rogers K, Holmes L Jr, Donohoe M, King MM, et al. Anterior distal femoral stapling for correcting knee flexion contracture in children with arthrogryposis--preliminary results. J Pediatr Orthop. 2010 Mar. 30(2):169-73. [Medline].

  8. Allison AS, Anderson FC, Pandy MG, Delp SL. Muscular Contributions to Hip and Knee Extension During the Single Limb Stance Phase of Normal Gait: a Framework for Investigating the Causes of Crouch Gait. Journal of Biomechanics. 2005. 38:2181-2189.

  9. Delp SL, Arnold AS, Piazza SJ. Graphics-based modeling and analysis of gait abnormalities. Biomed Mater Eng. 1998. 8(3-4):227-40. [Medline].

  10. Wren TA, Rethlefsen S, Kay RM. Prevalence of specific gait abnormalities in children with cerebral palsy: influence of cerebral palsy subtype, age, and previous surgery. J Pediatr Orthop. 2005 Jan-Feb. 25(1):79-83. [Medline].

  11. Williams JJ, Graham GP, Dunne KB, Menelaus MB. Late knee problems in myelomeningocele. J Pediatr Orthop. 1993 Nov-Dec. 13(6):701-3. [Medline].

  12. Thompson NS, Baker RJ, Cosgrove AP, Saunders JL, Taylor TC. Relevance of the popliteal angle to hamstring length in cerebral palsy crouch gait. J Pediatr Orthop. 2001 May-Jun. 21(3):383-7. [Medline].

  13. Gaurav K, Vilas J. A new approach to the management of fixed flexion deformity of the knee using Ilizarov's principle of distraction histogenesis: a preliminary communication. Int J Low Extrem Wounds. 2010 Jun. 9(2):70-3. [Medline].

  14. Hoffinger SA, Rab GT, Abou-Ghaida H. Hamstrings in cerebral palsy crouch gait. J Pediatr Orthop. 1993 Nov-Dec. 13(6):722-6. [Medline].

  15. van der Krogt MM, Doorenbosch CA, Harlaar J. Muscle length and lengthening velocity in voluntary crouch gait. Gait Posture. 2007 Oct. 26(4):532-8. [Medline].

  16. Delp SL, Arnold AS, Speers RA, Moore CA. Hamstrings and psoas lengths during normal and crouch gait: implications for muscle-tendon surgery. J Orthop Res. 1996 Jan. 14(1):144-51. [Medline].

  17. Rodda JM, Graham HK, Nattrass GR, Galea MP, Baker R, Wolfe R. Correction of severe crouch gait in patients with spastic diplegia with use of multilevel orthopaedic surgery. J Bone Joint Surg Am. 2006 Dec. 88(12):2653-64. [Medline].

  18. Kavitha R, Benjamin J, Susan B, Vineet M, Binay R. Physiological Cost Index in Cerebral Palsy: Its Role in Evaluating the Efficiency of Ambulation. J Pediatr Orthop. 2007. 27:130-136.

  19. Devalia KL, Fernandes JA, Moras P, Pagdin J, Jones S, Bell MJ. Joint distraction and reconstruction in complex knee contractures. J Pediatr Orthop. 2007 Jun. 27(4):402-7. [Medline].

  20. Kramer A, Stevens PM. Anterior femoral stapling. J Pediatr Orthop. 2001 Nov-Dec. 21(6):804-7. [Medline].

  21. Gannotti ME, Gorton GE 3rd, Nahorniak MT, Masso PD, Landry B, Lyman J, et al. Postoperative gait velocity and mean knee flexion in stance of ambulatory children with spastic diplegia four years or more after multilevel surgery. J Pediatr Orthop. 2007 Jun. 27(4):451-6. [Medline].

  22. Nene AV, Evans GA, Patrick JH. Simultaneous multiple operations for spastic diplegia. Outcome and functional assessment of walking in 18 patients. J Bone Joint Surg Br. 1993 May. 75(3):488-94. [Medline].

  23. Muthusamy K, Recktenwall SM, Friesen RM, Zuk J, Gralla J, Miller NH, et al. Effectiveness of an anesthetic continuous-infusion device in children with cerebral palsy undergoing orthopaedic surgery. J Pediatr Orthop. 2010 Dec. 30(8):840-5. [Medline].

  24. Gage JR. Gait Analysis in Cerebral Palsy (Clinics in Medicine [Mac Keith Press]). Cambridge University Press; 1991.

  25. Gage JR. Surgical treatment of knee dysfunction in cerebral palsy. Clin Orthop Relat Res. 1990 Apr. 45-54. [Medline].

  26. Klatt J, Stevens PM. Guided growth for fixed knee flexion deformity. J Pediatr Orthop. 2008 Sep. 28(6):626-31. [Medline].

  27. Maquet PG. Biomechanics of the Knee. Springer-Verlag Berlin and Heidelberg GmbH and Co. KG; 1989. 306pp.

  28. Mielke CH, Stevens PM. Hemiepiphyseal stapling for knee deformities in children younger than 10 years: a preliminary report. J Pediatr Orthop. 1996 Jul-Aug. 16(4):423-9. [Medline].

  29. Nakase T, Kitano M, Kawai H, Ueda T, Higuchi C, Hamada M, et al. Distraction osteogenesis for correction of three-dimensional deformities with shortening of lower limbs by Taylor Spatial Frame. Arch Orthop Trauma Surg. 2008 Sep 11. [Medline].

  30. Paley D, Herzenberg JE. Principles of Deformity Correction: Exercise Workbook. Springer; 2003. 460pp.

  31. Pauwels F. Biomechanics of the Locomotor Apparatus. Springer Verlag Berlin and Heidelberg GmBH and Co. KG; 1980. 518pp.

  32. Stout JL, Gage JR, Schwartz MH, Novacheck TF. Distal femoral extension osteotomy and patellar tendon advancement to treat persistent crouch gait in cerebral palsy. J Bone Joint Surg Am. 2008 Nov. 90(11):2470-84. [Medline].


Previous
Next

The lateral radiograph best demonstrates the open physes and the stigmata of chronic fixed knee flexion deformity (FKFD). This patient has avulsion "fractures" of the superior pole of the patella and of the tibial tubercle.
For flexion contracture, spasticity management (Botox/phenol/baclofen) or hamstring recession may offer some improvement, but these measures cannot overcome fixed knee flexion deformity (FKFD).
A posterior capsulotomy with or without PCL release can address fixed knee flexion deformity (FKFD), albeit with some risks, including neurovascular stretch injuries. Even with prolonged bracing following cast or frame removal, recurrent deformities are common.
Locking KAFO may support the patient for standing but cannot adequately address FKFD. When the deformity exceeds 20º, braces are poorly tolerated.
This child with arthrogryposis underwent unsuccessful posterior capsulotomies at age 3.
Starting at age 4, this patient subsequently underwent bilateral extension osteotomies 4 times, with recurrence each time as expected. Perhaps this sequence could have been abbreviated with guided growth, which, even if repeated, requires no casts or delay in weight bearing.
This ambulatory 15-year-old boy with arthrogryposis has never had an osteotomy; he was managed with stapling, followed by 8-plates, when he developed a recurrence. He has full extension on the right and 7º residual FKFD on the left. The 8-plates are still in situ (on the left) pending further growth.
The efficacy of floor reaction braces is compromised in the presence of FKFD. However, they may be continued following guided growth, pending correction, whereupon bracing may be unnecessary, provided the quadriceps are sufficiently strong.
Normal sagittal alignment permits the knee to lock in full extension, aided by powerful quadriceps and an intact extensor mechanism. The ground reaction force passes anterior to the "center of rotation" of the knee, while the PCL, posterior capsule, hamstrings, and gastrocnemius provide a tension band effect.
Fixed knee flexion deformity (FKFD). The knee is chronically bent, obligating the patient to walk with a crouch gait. The ground reaction force passes posterior to the center of rotation of the knee, where it overcomes the resistance of the weakened extensor mechanism. Secondary effects, including patella alta and fragmentation, are relatively common and painful.
(Images 11 through 15) This 5-year-old boy presented with a congenital knee flexion deformity. His only prior surgery was a Symes disarticulation for fibular absence and a rigid teratologic foot deformity. He was ambulatory in a prosthesis.
(Images 11 through 15) This patient underwent a supracondylar extension osteotomy of the femur.
(Images 11 through 15) Because of a relatively rapid recurrence of FKFD, this patient underwent anterior stapling of the femur; unfortunately, the staples migrated, but the physis is still open.
(Images 11 through 15) The staples in this patient were retrieved and replaced with a pair of 8-plates.
(Images 11 through 15) If we could turn back the clock, perhaps guided growth would have been sufficient to correct the problem in this patient, without an osteotomy or cast. The effective gain in limb length would occur gradually, without risk to the neurovascular structures.
This girl born with a teratologic knee flexion deformity and absent quadriceps had previous posterior capsulotomy, supracondylar osteotomy, and attempted stapling. Subsequently, she had a spatial frame applied to gradually extend the ankylosed knee; however, she fell and sustained a Salter I fracture of the proximal tibia.

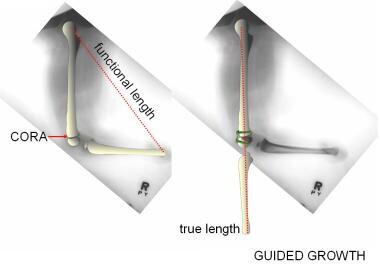

Guided growth permits one to address the FKFD at or close to the level of the CORA (center of rotational axis of deformity). This is efficient and prevents the need for translocation, such as is required in an osteotomy. The gradual correction poses no risk to the neurovascular structures.
