Coronary Artery Anomalies Clinical Presentation

  • Author: Louis I Bezold, MD; Chief Editor: Stuart Berger, MD  more...

Updated: Jan 05, 2015


History

Manifestations of coronary artery disease (CAD) reflect myocardial ischemia and are recognized clinically as the following:

  • Myocardial dysfunction
  • Angina
  • Dysrhythmia
  • Infarction [9]
  • Death

Pediatric CAD usually presents in infancy as cardiogenic shock or later in childhood or adolescence as an activity-related phenomenon, syncope, or chest pain.

In infants, angina may be recognized by the following symptoms:

Most infants present at age 2-3 months with the following symptoms:

  • Poor feeding
  • Dyspnea
  • Wheezing
  • Periods of pallor
  • Failure to thrive

In the older child or adolescent, anginal chest pain or syncope associated with activity is suggestive of CAD.

Unfortunately, in a significant number of patients, symptoms may not be evident before a sudden catastrophic, presumably dysrhythmic, event. Ventricular dysrhythmias are usually the terminal event in these circumstances.

Sudden death is most often associated with activity. It is frequently observed in association with anomalous origin of the left coronary artery (LCA) from the right sinus of Valsalva and coursing between the 2 great arteries. In this circumstance, the coronary artery often has an oblique origin, slitlike ostia, and intramural and interarterial course.

Coronary ischemia is felt to arise from disturbed kinetics from oblique origin, ostial stenosis, compression of intramural course, loss of reservoir capacity, and increased myocardial oxygen demands associated with exercise.

Sudden death is less commonly seen in association with anomalous origin of the right coronary artery (RCA) from the left sinus of Valsalva. It has also been reported in association with ostial stenosis, atresia, or hypoplasia.

Next

Physical

In infancy with coronary ischemia, patients present with signs of CHF and low output. The apex beat is diffuse with a palpable or audible third heart sound (S3) gallop. Heart sounds are often reduced in intensity with a holosystolic murmur of mitral valve insufficiency audible at the apex. In the older child, physical examination findings vary from entirely normal (most often) to findings of cardiogenic shock caused by myocardial infarction (rare).

Older patients with a coronary arterial fistula may present with signs of CHF, a continuous murmur, and, rarely, endocarditis.

Previous
Next

Causes

Associated syndromes

Coronary anomalies may be commonly associated with other congenital cardiac malformations, most notably, transposition of the great arteries, tetralogy of Fallot malformation, and different forms of pulmonary atresia. Each of these topics is addressed specifically in other chapters.

Williams syndrome

Patients with Williams syndrome (elfin facies, infantile hypercalcemia, hypoplastic teeth) may have coronary ostial narrowing as a component of supravalvar aortic stenosis characteristic of this disease. Patients with aortic valve disease commonly have variants in ostial origin. Those with varied forms of left ventricular outflow tract obstruction are at greater risk for increasing myocardial oxygen demand with limited ability to augment oxygen supply, placing them at increased risk for myocardial underperfusion.

D-transposition of the great arteries[10]

Coronary arteries in transposition of the great arteries normally arise from facing sinuses of Valsalva. Variation in coronary arterial patterning is frequent, and distribution of coronary pattern, as described by Sim et al, is presented in the image below.[11]

Thirteen patterns of origin and proximal epicardia Thirteen patterns of origin and proximal epicardial course of coronary arteries in 255 hearts with complete transposition of the great arteries. LAD = left anterior descending coronary artery; LCA = left coronary artery; LCx = left circumflex coronary artery; RCA = right coronary artery. (Image courtesy of Excerpta Medica, Inc).

Correct identification of the origin and course of coronary vasculature is important for patients undergoing Jatene arterial switch procedure. The presence of an intramural coronary artery course in this condition may complicate arterial switch operation.

According to Pasquini, this anomaly may be suggested on echocardiographic study by the eccentric origin of the coronary ostia arising away from the middle third of the aortic sinus and coursing within the aortic wall (see Transposition of the Great Arteries).[12]

Tetralogy of Fallot[10]

Operative repair of pulmonary outflow obstruction often involves patching of the right ventricular outflow tract and resection of the obstructing right ventricular muscle.[13]

An estimated 2-9% of patients with tetralogy of Fallot have coronary arterial anomalies, possibly affecting timing or approach to operative repair. The most common anomaly is origin of the left anterior descending (LAD) coronary artery from the RCA, which then courses across the pulmonary outflow tract. This is estimated to occur in approximately 4% of patients (see the image below.)

Thirteen patterns of origin and proximal epicardia Thirteen patterns of origin and proximal epicardial course of coronary arteries in 255 hearts with complete transposition of the great arteries. LAD = left anterior descending coronary artery; LCA = left coronary artery; LCx = left circumflex coronary artery; RCA = right coronary artery. (Image courtesy of Excerpta Medica, Inc).

Frequently, the conus branch of the RCA is large and supplies a significant portion of right ventricular infundibular muscle. Surgical techniques to avoid transection include limited incisions, varied tunneling techniques, and perhaps conduit placement. Cardiologists must predefine these abnormalities by noninvasive or invasive study (see Tetralogy of Fallot with Absent Pulmonary Valve, Tetralogy of Fallot with Pulmonary Atresia).

Pulmonary atresia with intact ventricular septum[10]

In this condition, absence of effective egress of blood from the cavity of the right ventricle may preserve primitive embryonic sinusoidal connections to coronary vasculature, resulting in the filling of the connections from the right heart in systole and filling from the aorta in diastole.

These abnormal right ventricular coronary sinusoidal connections can be recognized echocardiographically and angiographically.[14] The coronary vessel most often affected is the RCA, but the LAD system or, less frequently, the distal extent of the circumflex (Cx) coronary artery may also be affected. In addition, 70% of these coronary arteries may demonstrate severe intimal thickening, occlusion, or interruption.

In most cases, endocardial fibroelastosis, myocardial fibrosis, and acute myocardial infarction are observed. Optimal coronary arteriography often is required to delineate the extent of these abnormalities. Medical and surgical management strategies are varied and often ineffective (see Pulmonary Atresia with Intact Ventricular Septum).

Hypoplastic left heart syndrome and Shone complex

Clinically important anomalies of the left coronary system do occur in patients with left heart obstructive disease and can affect surgical approach and outcome, highlighting the importance of routinely attempting to identify coronary anatomy in pediatric patients with congenital heart disease.[10, 15]

Congenitally corrected transposition of the great arteries (atrioventricular and ventriculoarterial discordance

Congenitally corrected transposition of the great arteries (atrioventricular and ventriculoarterial discordance has much less variability of coronary anatomy than d-TGA. Most patients have so-called typical arrangement of the coronary origins; however, surgically important variations exist.[10]

Other forms of congenital heart disease

Other forms of congenital heart disease associated with coronary artery anomalies include truncus arteriosus, double outlet right ventricle, and bicuspid aortic valve.[10]

Previous


Contributor Information and Disclosures
Author

Louis I Bezold, MD Professor, Department of Pediatrics, Ohio State University College of Medicine; Director, Cardiology Consultation Service, Nationwide Children's Hospital

Louis I Bezold, MD is a member of the following medical societies: Alpha Omega Alpha, American Academy of Pediatrics, American College of Cardiology, American Heart Association, American Society of Echocardiography, Society of Pediatric Echocardiography

Disclosure: Nothing to disclose.

Specialty Editor Board

Mary L Windle, PharmD Adjunct Associate Professor, University of Nebraska Medical Center College of Pharmacy; Editor-in-Chief, Medscape Drug Reference

Disclosure: Nothing to disclose.

Julian M Stewart, MD, PhD Associate Chairman of Pediatrics, Director, Center for Hypotension, Westchester Medical Center; Professor of Pediatrics and Physiology, New York Medical College

Julian M Stewart, MD, PhD is a member of the following medical societies: American Academy of Pediatrics, American Autonomic Society, American Physiological Society

Disclosure: Received grant/research funds from Lundbeck Pharmaceuticals for none.

Chief Editor

Stuart Berger, MD Medical Director of The Heart Center, Children's Hospital of Wisconsin; Associate Professor, Department of Pediatrics, Section of Pediatric Cardiology, Medical College of Wisconsin

Stuart Berger, MD is a member of the following medical societies: American Academy of Pediatrics, American College of Cardiology, American College of Chest Physicians, American Heart Association, Society for Cardiovascular Angiography and Interventions

Disclosure: Nothing to disclose.

Additional Contributors

Juan Carlos Alejos, MD Clinical Professor, Department of Pediatrics, Division of Cardiology, University of California, Los Angeles, David Geffen School of Medicine

Juan Carlos Alejos, MD is a member of the following medical societies: American Academy of Pediatrics, American College of Cardiology, American Heart Association, American Medical Association, International Society for Heart and Lung Transplantation

Disclosure: Received honoraria from Actelion for speaking and teaching.

References
  1. Janik M, Chappell CH, Green TF, Kacharava AG. Two coincident coronary anomalies: absent left main coronary artery and origin of the right coronary artery from the middle left anterior descending artery. Tex Heart Inst J. 2009. 36(2):180-1. [Medline].

  2. Misuraca L, Rutigliano D, Pestrichella V, Contegiacomo G, Balbarini A. A very rare congenital abnormality: double right coronary artery. A case report. J Cardiovasc Med (Hagerstown). 2009 May 18. [Medline].

  3. Lluri G, Aboulhosn J. Coronary arterial development: a review of normal and congenitally anomalous patterns. Clin Cardiol. 2014 Feb. 37(2):126-30. [Medline].

  4. Liu Y, Lu X, Xiang FL, Poelmann RE, Gittenberger-de Groot AC, Robbins J, et al. Nitric oxide synthase-3 deficiency results in hypoplastic coronary arteries and postnatal myocardial infarction. Eur Heart J. 2012 Oct 9. [Medline].

  5. Angelini P, Fairchild VD, eds. Coronary Artery Anomalies: A Comprehensive Approach. Lippincott, Williams & Wilkins; 1999.

  6. Devanagondi R, Brenner J, Vricella L, Ravekes W. A tale of two brothers: anomalous coronary arteries in two siblings. Pediatr Cardiol. 2008 Jul. 29(4):816-9. [Medline].

  7. Brothers JA, Stephens P, Gaynor JW, Lorber R, Vricella LA, Paridon SM. Anomalous aortic origin of a coronary artery with an interarterial course: should family screening be routine?. J Am Coll Cardiol. 2008 May 27. 51(21):2062-4. [Medline].

  8. Tuo G, Marasini M, Brunelli C, Zannini L, Balbi M. Incidence and clinical relevance of primary congenital anomalies of the coronary arteries in children and adults. Cardiol Young. 2013 Jun. 23(3):381-6. [Medline].

  9. Silva J, Costa M, Mota P, Leitao-Marques AM. Myocardial infarction with anomalous coronary anatomy. Rev Port Cardiol. 2009 Feb. 28(2):201-5. [Medline].

  10. Lowry AW, Olabiyi OO, Adachi I, Moodie DS, Knudson JD. Coronary artery anatomy in congenital heart disease. Congenit Heart Dis. 2013 May-Jun. 8(3):187-202. [Medline].

  11. Sim EK, van Son JA, Edwards WD, et al. Coronary artery anatomy in complete transposition of the great arteries. Ann Thorac Surg. 1994. 57(4):890-894. [Medline].

  12. Pasquini L, Parness IA, Colan SD, et al. Diagnosis of intramural coronary artery in transposition of the great arteries using two-dimensional echocardiography. Circulation. 1993 Sep. 88(3):1136-41. [Medline].

  13. Saeed S, Hyder SN, Sadiq M. Anatomical variations of pulmonary artery and associated cardiac defects in Tetralogy of Fallot. J Coll Physicians Surg Pak. 2009 Apr. 19(4):211-4. [Medline].

  14. Sarkar K, Sharma SK, Kini AS. Catheter Selection for Coronary Angiography and Intervention in Anomalous Right Coronary Arteries. J Interv Cardiol. 2009 Apr 2. [Medline].

  15. Saroli T, Gelehrter S, Gomez-Fifer CA, van der Velde ME, Bove EL, Ensing GJ. Anomalies of left coronary artery origin affecting surgical repair of hypoplastic left heart syndrome and Shone complex. Echocardiography. 2008 Aug. 25(7):727-31. [Medline].

  16. Gadhinglajkar S, Sreedhar R. Surgery for anomalous origin of left coronary artery from pulmonary artery: the utility of intraoperative transesophageal echocardiography. Anesth Analg. 2009 May. 108(5):1470-2. [Medline].

  17. Giga V, Dobric M, Beleslin B, Sobic-Saranovic D, Tesic M, Djordjevic-Dikic A, et al. Estimation of infarct size using transthoracic Doppler echocardiographic measurement of coronary flow reserve in infarct related and reference coronary artery. Int J Cardiol. 2012 Oct 8. [Medline].

  18. Falcão SN, Rochitte CE, Junior WM, Quaglia L, Lemos PA, Sbano JC, et al. Incremental Value of Perfusion over Wall-Motion Abnormalities with the Use of Dobutamine-Atropine Stress Myocardial Contrast Echocardiography and Magnetic Resonance Imaging for Detecting Coronary Artery Disease. Echocardiography. 2012 Sep 25. [Medline].

  19. Lytrivi ID, Wong AH, Ko HH, et al. Echocardiographic diagnosis of clinically silent congenital coronary artery anomalies. Int J Cardiol. 2008 Jun 6. 126(3):386-93. [Medline].

  20. Bornemeier RA, Eble BK, Jaquiss RD, Imamura M. Repair of an anomalous left coronary artery from the pulmonary artery in a premature neonate. Congenit Heart Dis. 2008 Nov-Dec. 3(6):435-9. [Medline].

  21. Flynn M, Curtin R, Nowicki ER, et al. Regional wall motion abnormalities and scarring in severe functional ischemic mitral regurgitation: A pilot cardiovascular magnetic resonance imaging study. J Thorac Cardiovasc Surg. 2009 May. 137(5):1063-70.e2. [Medline].

  22. Lederlin M, Thambo JB, Latrabe V, Corneloup O, Cochet H, Montaudon M, et al. Coronary imaging techniques with emphasis on CT and MRI. Pediatr Radiol. 2011 Dec. 41(12):1516-25. [Medline].

  23. Rodriguez-Granillo GA, Rosales MA, Pugliese F, Fernandez-Pereira C, Rodriguez AE. Prevalence and characteristics of major and minor coronary artery anomalies in an adult population assessed by computed tomography coronary angiography. EuroIntervention. 2009 Mar. 4(5):641-7. [Medline].

  24. Ou P, Celermajer DS, Marini D, et al. Safety and accuracy of 64-slice computed tomography coronary angiography in children after the arterial switch operation for transposition of the great arteries. JACC Cardiovasc Imaging. 2008 May. 1(3):331-9. [Medline].

  25. Shepard TF, Srichai MB, Kim D, Lim R, Jacobs JE. Aberrant crossed left circumflex and left anterior descending arteries: diagnosis with multidetector cardiac CT angiography. J Comput Assist Tomogr. 2009 Mar-Apr. 33(2):211-4. [Medline].

  26. Aldana-Sepulveda N, Restrepo CS, Kimura-Hayama E. Single coronary artery: spectrum of imaging findings with multidetector CT. J Cardiovasc Comput Tomogr. 2013 Nov-Dec. 7(6):391-9. [Medline].

  27. Yu FF, Lu B, Gao Y, Hou ZH, Schoepf UJ, Spearman JV, et al. Congenital anomalies of coronary arteries in complex congenital heart disease: diagnosis and analysis with dual-source CT. J Cardiovasc Comput Tomogr. 2013 Nov-Dec. 7(6):383-90. [Medline].

  28. Sithamparanathan S, Padley SP, Rubens MB, Gatzoulis MA, Ho SY, Nicol ED. Great vessel and coronary artery anatomy in transposition and other coronary anomalies: a universal descriptive and alphanumerical sequential classification. JACC Cardiovasc Imaging. 2013 May. 6(5):624-30. [Medline].

  29. Chhatriwalla AK, Prieto LR, Brunken RC, Cerqueira MD, Younoszai A, Jaber WA. Preliminary data on the diagnostic accuracy of rubidium-82 cardiac PET perfusion imaging for the evaluation of ischemia in a pediatric population. Pediatr Cardiol. 2008 Jul. 29(4):732-8. [Medline].

  30. Cohen M, Berger S. The electrocardiogram as an adjunct in diagnosing congenital coronary arterial anomalies. Cardiol Young. 2010 Dec. 20 Suppl 3:59-67. [Medline].

  31. Frobel AK, Hulpke-Wette M, Schmidt KG, Laer S. Beta-blockers for congestive heart failure in children. Cochrane Database Syst Rev. 2009 Jan 21. CD007037. [Medline].

  32. Ginde S, Earing MG, Bartz PJ, Cava JR, Tweddell JS. Late complications after Takeuchi repair of anomalous left coronary artery from the pulmonary artery: case series and review of literature. Pediatr Cardiol. 2012 Oct. 33(7):1115-23. [Medline].

  33. Mainwaring RD, Reddy VM, Reinhartz O, Petrossian E, MacDonald M, Nasirov T, et al. Anomalous aortic origin of a coronary artery: medium-term results after surgical repair in 50 patients. Ann Thorac Surg. 2011 Aug. 92(2):691-7. [Medline].

  34. Jama A, Barsoum M, Bjarnason H, Holmes DR Jr, Rihal CS. Percutaneous closure of congenital coronary artery fistulae: results and angiographic follow-up. JACC Cardiovasc Interv. 2011 Jul. 4(7):814-21. [Medline].

  35. Farouk A, Zahka K, Siwik E, et al. Anomalous origin of the left coronary artery from the right pulmonary artery. J Card Surg. 2009 Jan-Feb. 24(1):49-54. [Medline].

  36. [Guideline] Maron BJ, Thompson PD, Ackerman MJ, et al. Recommendations and considerations related to preparticipation screening for cardiovascular abnormalities in competitive athletes: 2007 update: a scientific statement from the American Heart Association Council on Nutrition, Physical Activity, and Metabolism: endorsed by the American College of Cardiology Foundation. Circulation. 2007 Mar 27. 115(12):1643-455. [Medline]. [Full Text].

  37. Corrado D, Pelliccia A, Heidbuchel H, et al, for the Section of Sports Cardiology, European Association of Cardiovascular Prevention and Rehabilitation. Recommendations for interpretation of 12-lead electrocardiogram in the athlete. Eur Heart J. 2010 Jan. 31(2):243-59. [Medline].

  38. Higgins JP, Ananaba IE, Higgins CL. Sudden cardiac death in young athletes: preparticipation screening for underlying cardiovascular abnormalities and approaches to prevention. Phys Sportsmed. 2013 Feb. 41(1):81-93. [Medline].

  39. Yim ES, Basilico F, Corrado G. Early screening for cardiovascular abnormalities with preparticipation echocardiography: utility of focused physician-operated echocardiography in preparticipation screening of athletes. J Ultrasound Med. 2014 Feb. 33(2):307-13. [Medline].

  40. Angelini P. Normal and anomalous coronary arteries: definitions and classification. Am Heart J. 1989 Feb. 117(2):418-34. [Medline].

  41. Basso C, Maron BJ, Corrado D, Thiene G. Clinical profile of congenital coronary artery anomalies with origin from the wrong aortic sinus leading to sudden death in young competitive athletes. J Am Coll Cardiol. 2000 May. 35(6):1493-501. [Medline].

  42. Burch GH, Sahn DJ. Congenital coronary artery anomalies: the pediatric perspective. Coron Artery Dis. 2001 Dec. 12(8):605-16. [Medline].

  43. Coudrey L. The troponins. Arch Intern Med. 1998 Jun 8. 158(11):1173-80. [Medline].

  44. Davis JA, Cecchin F, Jones TK, Portman MA. Major coronary artery anomalies in a pediatric population: incidence and clinical importance. J Am Coll Cardiol. 2001 Feb. 37(2):593-7. [Medline].

  45. Gould KL. Coronary Artery Stenosis. New York, NY: Elsevier Science Publishers; 1991. 7-71.

  46. Hanley FL, Sade RM, Blackstone EH, et al. Outcomes in neonatal pulmonary atresia with intact ventricular septum. A multiinstitutional study. J Thorac Cardiovasc Surg. 1993 Mar. 105(3):406-23, 424-7; discussion 423-4. [Medline].

  47. Jaquiss RD, Tweddell JS, Litwin SB. Surgical therapy for sudden cardiac death in children. Pediatr Clin North Am. 2004 Oct. 51(5):1389-400. [Medline].

  48. Kirklin JW, Barratt-Boyes BG. Congenital anomalies of the coronary arteries in Cardiac Surgery. 2nd ed. New York, NY: Churchill Livingstone; 1992.

  49. Liberthson RR. Sudden death from cardiac causes in children and young adults. N Engl J Med. 1996 Apr 18. 334(16):1039-44. [Medline].

  50. Manghat NE, Morgan-Hughes GJ, Marshall AJ, Roobottom CA. Multidetector row computed tomography: imaging congenital coronary artery anomalies in adults. Heart. 2005 Dec. 91(12):1515-22. [Medline].

  51. Memisoglu E, Hobikoglu G, Tepe MS. Congenital coronary anomalies in adults: comparison of anatomic course visualization by catheter angiography and electron beam CT. Catheter Cardiovasc Interv. 2005 Sep. 66(1):34-42. [Medline].

  52. Rigatelli G, Rigatelli G. Coronary artery anomalies: what we know and what we have to learn. Aproposal for a new clinical classification. Ital Heart J. 2003 May. 4(5):305-10. [Medline].

  53. Yamanaka O, Hobbs RE. Coronary artery anomalies in 126,595 patients undergoing coronary arteriography. Cathet Cardiovasc Diagn. 1990 Sep. 21(1):28-40. [Medline].


Previous
Next

Incidence of coronary artery abnormalities detected in 1,950 selective coronary angiograms performed in adult patients with suspected coronary arterial obstructive disease and otherwise anatomically normal hearts.
Normal anatomy of coronary arteries, viewed from above with the atria removed. A = aortic valve; P = pulmonary valve; T = tricuspid valve; M = mitral valve; RCA = right coronary artery; AM = acute marginal branch of the right coronary artery; CB = conus branch of the right coronary artery; PD = posterior descending branch; AVN = atrioventricular nodal branch; Circ = circumflex coronary artery; OM = obtuse marginal branches of circumflex coronary artery; LAD = left anterior descending coronary artery; Diag = diagonal branches of the left anterior descending coronary artery; Inter = intermedius branch of the left coronary artery.

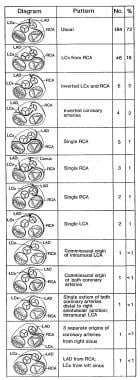

Thirteen patterns of origin and proximal epicardial course of coronary arteries in 255 hearts with complete transposition of the great arteries. LAD = left anterior descending coronary artery; LCA = left coronary artery; LCx = left circumflex coronary artery; RCA = right coronary artery. (Image courtesy of Excerpta Medica, Inc).
MRI of anomalous right coronary artery (RCA = black arrow) arising from the left sinus of Valsalva and coursing interatrially between the aorta (AO) and the pulmonary artery (PA). Note the oblique origin and the intramural course within the aortic wall, all factors compromising coronary blood flow.
Three-dimensional volume rendering from multidetector CT imaging of a large right coronary artery aneurysm (arrow). Subtraction of the myocardium in B shows the fistula draining to the coronary sinus and then into the right atrium. (Reproduced from Manghat NE, Morgan-Hughes GJ, Marshall AJ, Roobottom CA: Multidetector row computed tomography: imaging congenital coronary artery anomalies in adults. Heart 2005 Dec; 91(12): 1515-22).
Selective right coronary arterial injection in an 8-month-old female with tetralogy of Fallot malformation. Study demonstrates left anterior descending coronary artery (LAD) arising early from the right coronary artery (RCA) and coursing across the right ventricular outflow tract. Left anterior oblique projection.
Operative repair of anomalous left coronary artery (LCA) from the right sinus of Valsalva. The slitlike anomalous origin of the left coronary artery from the right aortic sinus of Valsalva is demonstrated, as is the intramural course of the coronary artery. (B) The intramural course of the artery is unroofed, placing the functional ostium in the left sinus. (C) Tacking sutures are used to secure the intima of the new coronary ostium and to reinforce the adjacent commissure of the aortic valve. (Reproduced from Jaquiss RD, Tweddell JS, Litwin SB: Surgical therapy for sudden cardiac death in children. Pediatr Clin North Am 2004 Oct; 51(5): 1389-400).
