Biotin Deficiency
Updated: Mar 9, 2010
Introduction
Background
Biotin deficiency is a rare nutritional disorder caused by a deficiency of the water-soluble B vitamin termed biotin. This article discusses biotin deficiency caused by deficiency of the enzyme biotinidase (see also Biotinidase Deficiency).
At least 25 countries have included biotinidase deficiency in their screening programs for neonatal disease.
Biotin deficiency rarely, if ever, occurs in healthy individuals who consume a regular diet unless they are being treated either with certain anticonvulsants or with broad-spectrum antibiotics. The extremely low prevalence of biotin deficiency is probably the result of a combination of factors. First, the daily requirement for biotin is low (approximately 150-300 µg/d). Second, almost all foods contain significant quantities of biotin, and many widely consumed foods are relatively rich in biotin. Third, the intestinal flora synthesizes significant quantities of biotin, and at least a portion of that biotin is believed to be absorbed into the bloodstream. Fourth, a significant fraction of the body's biotin is recycled; that is, a given molecule of biotin may be repeatedly used before it is eventually lost from the body in the feces or urine.
Pathophysiology
History
Biotin was first recognized as an essential nutrient factor in mammals in 1936. Ten years earlier, the inclusion of large amounts of raw egg whites in experimental diets in rats had produced symptoms of toxicity within a few weeks of the diet being initiated. In 1926, Boas referred to these symptoms of toxicity as egg-white injury syndrome.1 The major findings included severe dermatitis, loss of hair, and lack of muscular coordination. Boas also noted that yeast, liver, and several other foodstuffs contained a substance that protected rats from egg-white injury syndrome. Later, the protective compound in the foodstuffs was identified as biotin. Biotinidase deficiency was discovered in 1982.
The biochemical basis for egg-white injury syndrome was quickly elucidated when raw egg whites were found to contain the glycoprotein avidin, which has a remarkable affinity for biotin. Once a biotin-avidin complex forms, the bond is essentially irreversible; the biotin-avidin complex is not broken during passage of the food bolus through the stomach and intestines. As a result, biotin is not liberated from food, and the biotin-avidin complex is lost in the feces. The final step in solving the mystery of egg-white injury syndrome was the demonstration that the syndrome could be prevented by heating the egg whites, a process that denatures avidin and destroys its affinity for biotin.
Biochemistry

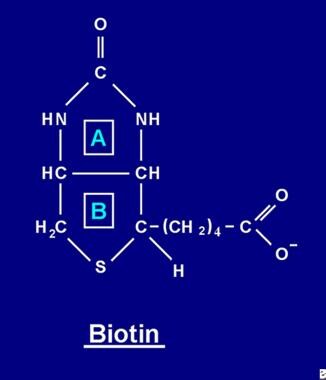

Biotin is a bicyclic molecule composed of a ureido ring fused with a tetrahydrothiophene ring (see the image below).Biotin is a bicyclic (more precisely, heterocyclic) compound composed of an ureido ring (A) fused with a tetrahydrothiophene ring (B). A valeric acid substituent is attached to one of the carbon atoms of the tetrahydrothiophene ring.
A valeric acid substituent is attached to one of the 2 carbon atoms of the tetrahydrothiophene ring. Through this carboxyl group, biotin is linked covalently to the β-amino group of lysine in 4 carboxylases that play critical roles in intermediary metabolism.
The 4 enzymes are propionyl coenzyme A (CoA) carboxylase (PCC), pyruvate carboxylase (PC), β-methylcrotonyl CoA carboxylase (β-MCC), and acetyl CoA carboxylase (ACC). PCC is required for the complete catabolism of several branched-chain amino acids and all odd-chain fatty acids. In the absence of PCC, a severe clinical disease (characterized by acidosis, hypoglycemia, hyperammonemia, coma, and death) develops. β-MCC is required for the complete catabolism of the amino acid leucine. In absence of β-MCC, a severe clinical illness (similar to that of PCC deficiency) develops. ACC is required for the catalysis of the first step in fatty acid synthesis. PC is an essential enzyme of gluconeogenesis. In the absence of PC, severe fasting hypoglycemia develops.
In all 4 carboxylases, biotin functions as a coenzyme or prosthetic group that serves as a carrier for CO2 in a multistep reaction. In the first reaction, the biotin moiety of a carboxylase is carboxylated at the nitrogen atom diagonally across from the valeric acid substituent (see the image below).

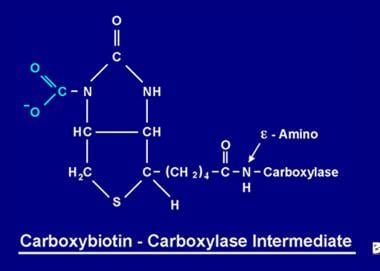

Carboxybiotin carboxylase is the activated form of a carboxylase that conducts the actual carboxylation of a substrate. The CO2 residue attached to the nitrogen atom diagonally across from the valeric acid substituent is transferred to the substrate to be carboxylated, and the original carboxylase is liberated intact.
In the second reaction, the CO2 moiety is transferred to the substrate (causing it to be carboxylated in the process), and the original carboxylase is liberated intact, ready to perform another carboxylation.
Given the critical roles of biotin-containing carboxylases in intermediary metabolism, the existence of major gaps in knowledge regarding the biochemistry of biotin is remarkable. For example, the source of the sulfur atom is unknown, as is the mechanism by which it is inserted into the biotin ring. Moreover, neither the precise mechanism by which biotin crosses the intestinal border nor the mechanism by which biotin is delivered to peripheral tissues has been established. Although the ability of the intestinal flora to synthesize biotin is known, the absorbability of this biotin has not been demonstrated. The strongest evidence that supports a significant contribution by the intestinal flora to the body's biotin economy is the consistent finding that the combined daily output of biotin in the urine and stool exceeds the dietary intake of biotin.
The daily dietary requirement of biotin has not been established in rigorous studies; instead, only recommended ranges for daily intake of this important vitamin are available. The major reason for this gap in knowledge is the fact that the biotin present in some foods is highly bioavailable, whereas a significant portion of the biotin in other foods is in a form that prevents its absorption. Thus, the percentage of absorbable biotin in a given food cannot be easily determined.
Biotin cycle
The steps in the flow of biotin from its entry into the body (via the mouth or peripheral vein) to its exit in the stool or urine are depicted in the image below.
Depiction of the flow of biotin in the biotin cycle.
Free biotin enters the body via the intestinal mucosa. The biotin present in food is essentially protein bound and must be converted to free biotin in the intestine before it can be absorbed. Protein-bound biotin is subjected to the action of the major proteolytic enzymes of the stomach and pancreas. Proteolysis is completed by the action of the oligopeptidases of the pancreas and jejunal-brush border. The final product is biocytin (see the image below).

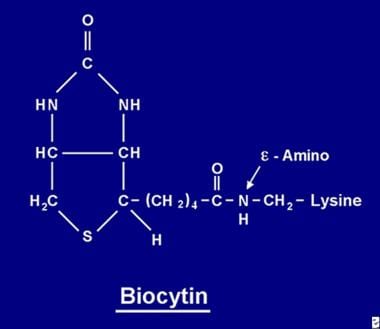

Biocytin is the product of the complete proteolysis of biotin-containing proteins and peptides. The enzyme biotinidase cleaves biocytin into free biotin and the amino acid lysine. The free biotin is then available for intestinal absorption or intracellular coupling to an apocarboxylase to form a holocarboxylase.
In biocytin, biotin is covalently bound to the β-amino moiety of lysine, the amino acid to which it was bound in the food that was consumed. The enzyme biotinidase cleaves biocytin into biotin and free lysine, and these molecules are rapidly absorbed.
The proteolytic reaction sequence in the intestine has an efficiency of 60-80%. As a result, significant quantities of biotin-containing peptides are lost in the feces.
Once absorbed, biotin is covalently bound to one of the 4 apocarboxylases (apo-PCC, apo-PC, apo-β-MCC, apo-ACC) to form the corresponding holocarboxylase (see the image below) via the action of the enzyme holocarboxylase synthetase.The biotin molecule is bound to the protein by a peptide bond to an e-amino group of an apocarboxylase to form a holocarboxylase.
A single holocarboxylase molecule can perform many carboxylations before it is captured by cellular lysosomes. In the lysosomes, various proteolytic enzymes degrade the holocarboxylase to form biocytin, which, in turn, is hydrolyzed by biotinidase to form biotin and lysine. Free biotin is then available for insertion into an apocarboxylase to form a new holocarboxylase molecule. The biotin cycle is not 100% efficient. As a result, small amounts of free biotin (and some biocytin) escape the cycle and are lost in the feces and urine. For this reason, mammals must consume some biotin to replenish the biotin lost from the body.
Biotin deficiency
Regardless of the etiology of biotin deficiency (see Causes), clinical manifestations are essentially the same. However, the rates of symptom development and the sequence in which symptoms appear can greatly differ. Clinical manifestations are confined to the intestinal tract, skin, hair, CNS, and peripheral nervous system. The mechanism responsible for the development of the manifestations has not been established; however, altered fatty acid synthesis (due to deficient activity of the biotin-containing enzyme ACC) may play an important role.
Adhisivam et al reported acute-onset quadriplegia in a 10-year-old boy associated with basal ganglia lesions due to biotin deficiency.2 The history included prolonged raw egg consumption as the basis for the biotin deficiency. Biotin treatment resulted in remarkable recovery.
Given the critical biochemical pathways affected by biotin deficiency, the involvement of many organs could reasonably be expected; however, this is not the case, and few organs are involved. Based on observations in patients with this inborn error of metabolism, biotin deficiency can have a very serious, even fatal, outcome if it is allowed to progress without treatment. However, to the author's knowledge, no deaths due to biotin deficiency have been reported. Biotinidase could possess an important regulatory function in chromatin/DNA function.
Frequency
International
Neto et al noted that the estimated incidence of biotinidase deficiency in Brazil is about 1 case per 9,000 population; this rate is higher than in most other countries, in which the incidence of profound and partial biotinidase deficiency is estimated to be approximately 1 case per 60,000 population.3
Laszlo et al reported a series in Hungary from 1989-2001 in which 1,336,145 newborns were screened for biotinidase deficiency in Hungary; 58 children with the disorder were noted to be enzyme deficient.4
Yetgin et al noted biotinidase deficiency and juvenile myelomonocytic leukemia in a Turkish infant of consanguineous parents.5
Thus, the true incidence of biotin deficiency, although not known, appears to be very low.
Mortality/Morbidity
Baykal et al reported a series of 32 biotinidase-deficient men and women found by family studies in the index patients.6 The series included 10 mothers, 4 fathers, and 18 siblings. Seventeen individuals (3 mothers, 4 fathers, and 10 brothers and sisters) had profound biotinidase deficiency (<10% of mean normal activity), and 15 (7 mothers and 8 brothers and sisters) had partial biotinidase deficiency (10-30% of mean normal activity). In the group with profound biotinidase deficiency, only 3 brothers and sisters had symptoms. The investigators noted skin eruption, microcephaly, developmental delay, and convulsions as symptoms. The patients with partial biotinidase deficiency lacked clinical manifestations, other than one sibling with a borderline intelligence quotient (IQ) score.
Race
Biotin deficiency can occur in individuals of any race.
Sex
Biotin deficiency occurs with equal frequency in both sexes.
Age
Signs and symptoms of biotin deficiency can develop in persons of any age.
Clinical
History
Profound biotinidase deficiency can be detected with newborn screening. The first symptoms of biotin deficiency are associated with the skin and hair.
- Symptoms develop within 3-5 weeks of the onset of deficient biotin intake. The most common cutaneous findings include the following:
- Dry skin
- Seborrheic dermatitis
- Fungal infections
- Rashes, including erythematous periorofacial macular rash
- Fine and brittle hair
- Hair loss or total alopecia
- Approximately 1-2 weeks later, neurologic symptoms begin to develop. The most common neurologic findings include the following:
- Mild depression, which may progress to profound lassitude and, eventually, to somnolence
- Changes in mental status
- Generalized muscular pains (myalgias)
- Hyperesthesias and paresthesias
- Intestinal tract symptoms also develop and most commonly include the following:
- Nausea, occasionally severe
- Vomiting
- Anorexia
Physical
Individuals with biotin deficiency are typically healthy before the onset of the biotin-deficient state. Growth and stature are normal. Regardless of the etiology of biotin deficiency, clinical manifestations are essentially the same in all patients; however, the rate of symptom development and the sequence in which symptoms appear greatly vary. Physical manifestations are confined to the skin and hair, central and peripheral nervous systems, and intestinal tract.
- Skin and hair: The first signs that develop in biotin deficiency are associated with the skin and hair. Dry skin is a consistent finding and is often associated with seborrheic dermatitis, which can be severe. The skin lesions provide an ideal environment for fungal infections that may be resistant to treatment until the biotin-deficient state is reversed. An erythematous periorofacial macular rash is a common finding. The hair quickly becomes fine and brittle, and total alopecia often develops.
- Hearing: Genc et al performed subjective and objective audiologic tests on 20 children with profound biotinidase deficiency and found that approximately 55% of children with biotinidase deficiency develop sensorineural hearing loss.7 The hearing loss varies in severity from mild to profound.
- Central and peripheral nervous systems: The neurologic signs are multiple and nonspecific. They include mild depression, which may progress to profound lassitude, and, eventually, somnolence. Occasionally, changes in mental status are observed. Generalized muscular pains (myalgias), hyperesthesias, and paresthesias are common findings that occasionally become disabling. Profound biotinidase deficiency in a 3-year-old boy with progressive spastic paraparesis and ascending weakness but not the typical neurological symptoms was noted by Chedrawi et al.8 Biotinidase deficiency with hypertonia was noted by Rathi and Rathi.9
- Intestinal tract: Nausea, occasionally severe, is an occasional finding, as is anorexia. These problems are rarely severe enough to significantly interfere with the adequate oral intake of food.
Causes
Causes of biotin deficiency include the following:- Eating raw egg whites: Some mistakenly believe that raw egg-white consumption is the only cause of biotin deficiency. Nonetheless, a diet that contains raw egg whites quickly and almost invariably leads to biotin deficiency.
- Total parenteral nutrition without biotin supplementation: Several cases of biotin deficiency in patients receiving prolonged total parenteral nutrition (TPN) therapy without added biotin have been reported. Therefore, all patients receiving TPN must also receive biotin at the recommended daily dose, especially if TPN therapy is expected to last more than 1 week. All hospital pharmacies currently include biotin in TPN preparations.
- Anticonvulsant therapy: Prolonged use of certain drugs, especially phenytoin, primidone, and carbamazepine, may lead to biotin deficiency; however, valproic acid therapy does not cause this condition. Some anticonvulsants inhibit biotin transport across the intestinal mucosa. Evidence suggests that these anticonvulsants accelerate biotin catabolism. Therefore, supplemental biotin, in addition to the usual minimum daily requirements, has been suggested for patients who are treated with anticonvulsants that have been linked to biotin deficiency.
- Prolonged oral antibiotic therapy: Prolonged use of oral antibiotics has been associated with biotin deficiency. Alterations in the intestinal flora caused by the prolonged administration of antibiotics are presumed to be the basis for biotin deficiency.
- Genetic mutation: Mikati et al reported a case of partial biotinidase deficiency (plasma biotinidase level of 1.3 nm/min/mL) in a 7-month-old boy.10 The boy presented with perinatal distress followed by developmental delay, hypotonia, seizures, and infantile spasms without alopecia or dermatitis. The child's neurologic symptoms abated following biotin supplementation and antiepileptic drug therapy. DNA mutational analysis revealed that the child was homozygous for a novel E64K mutation and that his mother and father were heterozygous for the novel E64K mutation.
More on Biotin Deficiency |
 Overview: Biotin Deficiency |
| Differential Diagnoses & Workup: Biotin Deficiency |
| Treatment & Medication: Biotin Deficiency |
| Follow-up: Biotin Deficiency |
| Multimedia: Biotin Deficiency |
| References |
| Next Page » |
References
Boas MA. The Effect of Desiccation upon the Nutritive Properties of Egg-white. Biochem J. 1927;21(3):712-724.1. [Medline].
Adhisivam B, Mahto D, Mahadevan S. Biotin responsive limb weakness. Indian Pediatr. 2007 Mar;44(3):228-30. [Medline].
Neto EC, Schulte J, Rubim R, et al. Newborn screening for biotinidase deficiency in Brazil: biochemical and molecular characterizations. Braz J Med Biol Res. Mar 2004;37(3):295-9. [Medline].
Laszlo A, Schuler EA, Sallay E, et al. Neonatal screening for biotinidase deficiency in Hungary: clinical, biochemical and molecular studies. J Inherit Metab Dis. 2003;26(7):693-8. [Medline].
Yetgin S, Aytac S, Kalkanoglu S, Coskun T, Ortmann C, Kratz C, et al. Biotinidase deficiency and juvenile myelomonocytic leukemia in a Turkish infant of consanguineous parents. Pediatr Hematol Oncol. 2007 Sep;24(6):453-5. [Medline].
Baykal T, Gokcay G, Gokdemir Y, et al. Asymptomatic adults and older siblings with biotinidase deficiency ascertained by family studies of index cases. J Inherit Metab Dis. 2005;28(6):903-12. [Medline].
Genc GA, Sivri-Kalkanoglu HS, Dursun A, et al. Audiologic findings in children with biotinidase deficiency in Turkey. Int J Pediatr Otorhinolaryngol. Feb 2007;71(2):333-9. [Medline].
Chedrawi AK, Ali A, Al Hassnan ZN, Faiyaz-Ul-Haque M, Wolf B. Profound biotinidase deficiency in a child with predominantly spinal cord disease. J Child Neurol. 2008;23:1043-8. [Medline].
Rathi N, Rathi M. Biotinidase deficiency with hypertonia as unusual feature. Indian Pediatr. 2009;2009:65-7. [Medline].
Mikati MA, Zalloua P, Karam P, Habbal MZ, Rahi AC. Novel mutation causing partial biotinidase deficiency in a Syrian boy with infantile spasms and retardation. J Child Neurol. Nov 2006;21(11):978-81. [Medline].
Moslinger D, Muhl A, Suormala T, Baumgartner R, Stockler-Ipsiroglu S. Molecular characterisation and neuropsychological outcome of 21 patients with profound biotinidase deficiency detected by newborn screening and family studies. Eur J Pediatr. Dec 2003;162 Suppl 1:S46-9. [Medline].
Schulpis KH, Gavrili S, Tjamouranis J, et al. The effect of neonatal jaundice on biotinidase activity. Early Hum Dev. May 2003;72(1):15-24. [Medline].
Dobrowolski SF, Angeletti J, Banas RA, Naylor EW. Real time PCR assays to detect common mutations in the biotinidase gene and application of mutational analysis to newborn screening for biotinidase deficiency. Mol Genet Metab. Feb 2003;78(2):100-7. [Medline].
Desai S, Ganesan K, Hegde A. Biotinidase deficiency: a reversible metabolic encephalopathy. Neuroimaging and MR spectroscopic findings in a series of four patients. Pediatr Radiol. 2008;38:848-56. [Medline].
Weber P, Scholl S, Baumgartner ER. Outcome in patients with profound biotinidase deficiency: relevance of newborn screening. Dev Med Child Neurol. Jul 2004;46(7):481-4. [Medline].
Forbes GM, Forbes A. Micronutrient status in patients receiving home parenteral nutrition. Nutrition. Nov-Dec 1997;13(11-12):941-4. [Medline].
Gonzalez EC, Marrero N, Frometa A, et al. Qualitative colorimetric ultramicroassay for the detection of biotinidase deficiency in newborns. Clin Chim Acta. Jul 15 2006;369(1):35-9. [Medline].
Hassan YI, Zempleni J. Epigenetic regulation of chromatin structure and gene function by biotin. J Nutr. Jul 2006;136(7):1763-5. [Medline].
Higuchi R, Mizukoshi M, Koyama H, Kitano N, Koike M. Intractable diaper dermatitis as an early sign of biotin deficiency. Acta Paediatr. Feb 1998;87(2):228-9. [Medline].
Higuchi R, Noda E, Koyama Y, et al. Biotin deficiency in an infant fed with amino acid formula and hypoallergenic rice. Acta Paediatr. Jul 1996;85(7):872-4. [Medline].
Mock DM. Biotin status: which are valid indicators and how do we know?. J Nutr. Feb 1999;129(2S Suppl):498S-503S. [Medline].
Mock DM. Skin manifestations of biotin deficiency. Semin Dermatol. Dec 1991;10(4):296-302. [Medline].
Mock DM, Dyken ME. Biotin catabolism is accelerated in adults receiving long-term therapy with anticonvulsants. Neurology. Nov 1997;49(5):1444-7. [Medline].
Mock DM, Mock NI, Nelson RP, Lombard KA. Disturbances in biotin metabolism in children undergoing long-term anticonvulsant therapy. J Pediatr Gastroenterol Nutr. Mar 1998;26(3):245-50. [Medline].
Mock NI, Malik MI, Stumbo PJ, Bishop WP, Mock DM. Increased urinary excretion of 3-hydroxyisovaleric acid and decreased urinary excretion of biotin are sensitive early indicators of decreased biotin status in experimental biotin deficiency. Am J Clin Nutr. Apr 1997;65(4):951-8. [Medline].
Molteno C, Smit I, Mills J, Huskisson J. Nutritional status of patients in a long-stay hospital for people with mental handicap. S Afr Med J. Nov 2000;90(11):1135-40. [Medline].
Perez-Monjaras A, Cervantes-Roldan R, Meneses-Morales I, et al. Impaired biotinidase activity disrupts holocarboxylase synthetase expression in late onset multiple carboxylase deficiency. J Biol Chem. 20008;283:34150-8. [Medline].
Velazquez A. Biotin deficiency in protein-energy malnutrition: implications for nutritional homeostasis and individuality. Nutrition. Nov-Dec 1997;13(11-12):991-2. [Medline].
Welling DB. Long-term follow-up of hearing loss in biotinidase deficiency. J Child Neurol. 2007 Aug;22(8):1055. [Medline].
Wiznitzer M, Bangert BA. Biotinidase deficiency: clinical and MRI findings consistent with myelopathy. Pediatr Neurol. Jul 2003;29(1):56-8. [Medline].
Wolf B. Disorders of biotin metabolism. In: Scriver CR, Beaudet AL, et al, eds. The Metabolic and Molecular Bases of Inherited Disease. 8th ed. New York, NY: McGraw-Hill; 2001:3935-62.
Zempleni J, Mock DM. Bioavailability of biotin given orally to humans in pharmacologic doses. Am J Clin Nutr. Mar 1999;69(3):504-8. [Medline].
